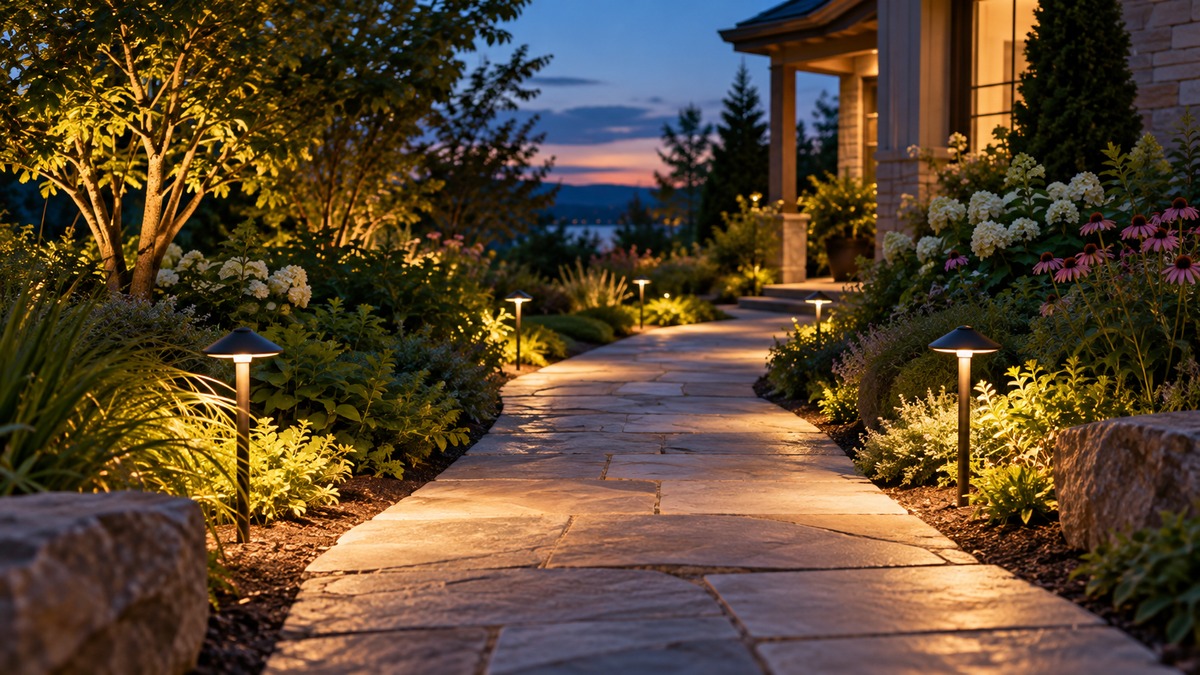

How to Light a Garden Path Safely
As an Amazon Associate we earn from qualifying purchases.
How to light a garden path safely starts with the wiring, not the fixtures. Three product manuals and two extension pages give the same basic order: plan the lit stretch, power it from a protected outlet, keep the power unit and cable where the manual says, and follow the instructions in your own kit. A WSU Extension release notes that lighting is usually considered primarily as a safety measure, so this guide puts the electrical details first.
Quick answer
- Plan the lit stretch on paper first. Iowa State University Extension says designing with light takes the same planning as the rest of the landscape.
- Power any low-voltage unit from a covered GFCI-protected outlet marked for wet locations, as the manuals describe.
- Do not run the power unit on an extension cord, and do not add a dimmer if your manual forbids it.
- The manuals disagree on cable depth, so use the figure printed for your own kit.
What you need before you start
A low-voltage path kit usually has a power unit, cable, and fixtures that go into the ground. The Volt manual lists its package contents as a transformer, a riser, screws, a wall anchor, an Allen wrench and a stake. The Kichler sheet says the power unit connects to a 115/120 volt outlet. Check the parts in your box against the list in your manual before you start, since the sources we opened do not describe one standard kit.
The cable matters as much as the fixtures. The Kichler sheet says “The 8, 10, 12 or 16GA cable is intended for shallow burial.” It also says “The #18 ga. fixture wire is not intended for direct burial.” The sheet treats the two as different parts with different burial rules, so read the manual before you substitute one for the other.
Plan the lit stretch
Start with what the light is for. The Iowa State article advises identifying the area or areas to be lit and choosing their most striking features. It says “One or 2 focal points in each area is adequate,” and it names “trees, pathways, flower beds, or fences” as possible focal points. For a path, the pathway itself can serve as the focal point. The article also says “Designing with light requires the same sort of planning that the landscape does.”
The article also says “Every landscape also has areas that should remain unlit.” Leaving some stretches dark is part of the plan, not an oversight. It adds that “Installation of the lighting units is easier if there is some kind of plan to follow,” so sketch the path, the outlet and the fixtures before you dig.
The WSU Extension release says “Lighting is a necessary part of the landscape to illuminate pathways, steps and entryways.” Its writer then notes that lighting is “usually considered primarily as a safety measure,” and adds that the chance to use light imaginatively is often overlooked. Use the lights to show the route rather than to flood every plant beside it. If you want motion-activated lighting for a different spot, see our guide to solar motion-activated flood lights.
Connect the power unit safely
Use a GFCI-protected outlet
All three manuals address the outlet. The Volt manual says: “When used outdoors, install only to a covered Class A GFCI protected receptacle that is weatherproof with the power unit connected to the receptacle.” The Kichler sheet says the outdoor power unit “shall be connected to a 115/120 volt covered GFCI receptacle marked “Wet Location” while in use.” The same sheet adds: “To comply with CSA requirement, this fixture should be installed by a qualified electrician.” The Volt manual adds: “Power supply must be connected (using supplied power cord) to GFCI protected receptacle with an In-use cover.” If your outlet is not GFCI protected, none of these manuals describes a workaround, so ask a qualified electrician to look at it before you plug in.
Keep the power unit away from water
The distances are easy to miss. The Harbor Freight manual says: “Install power unit 5 feet (1.5m) or more from a pool or spa and 10 feet (3.05m) or more from a fountain.” The Volt manual gives the same pair of distances in its own wording. The Kichler sheet applies its distance to the fixture, not the power unit: “not to be installed within 10 feet (3M) of a pool, spa or fountain.” The same sheet says the fixture is “Not suitable for use with submersible (fountain) lighting fixtures,” and it tells the reader “DO not use with swimming pool or spa lighting fixtures.” Keep the power unit at the distance your manual gives, and do not mix the kit with pool or spa lights.
Mount the unit and skip the extension cord
The Harbor Freight manual says to “Mount at least 1 foot (30cm) above ground.” It also says “Suitable for outdoor use only.” The Volt manual says its power supplies are indoor and outdoor rated, “but we recommend that the transformer be mounted outdoors.” The same manual says to “install power unit in or on non-combustible materials only.” If you mount it indoors, the same manual says to “check for local electrical codes that may apply.” The Harbor Freight manual is direct about cords: “Do not use extension cords.”
Check the load before you add fixtures
The power unit has a limit, and the manuals state it differently. The Harbor Freight manual says “Use only with maximum 120W lamp load.” The Kichler sheet says “This fixture is to be used only with a power unit (transformer) rated a maximum of 300 W.” The Kichler sheet also says to “use only with low voltage landscape fixtures and accessories.” These are different products, so the limit to follow is the one printed on your own unit. Add up the wattage of the fixtures you plan before you buy more lights to fill the path, and keep the total inside the rating printed on the unit.
Bury the cable and set the fixtures
The manuals disagree on cable depth, and this is the most important place to read your own instructions. The Kichler sheet says “Bury cable a minimum of 6 inches (152 mm) below the surface.” The Harbor Freight manual says the main secondary wiring “is intended for shallow burial – less than 6 inches (152mm).” The two figures do not match. Use the depth printed for your kit, and if the kit prints none, write that down and ask the seller or manufacturer rather than guessing.
The Kichler sheet also says direct burial rated wire should be buried “a minimum of 6” (152mm) beneath the surface of the ground.” That line is for direct burial wire, so check the label on your cable before you assume the two rules match. The Volt manual says the transformer “can be mounted to a wall or the stake,” but none of the three manuals gives steps for pressing a stake into the ground. Set the fixtures using the planned layout and the steps in your kit.
Check the job after you finish
- Confirm the outlet is GFCI protected and covered, and that the power unit plugs into that outlet as the manual describes.
- Confirm the power unit sits at the distances from a pool, spa or fountain that your manual gives.
- Confirm no extension cord and no dimmer sits between the power unit and the outlet.
- Confirm the cable depth matches the figure printed for your kit.
- Walk the path after dark. Iowa State Extension notes that some areas should stay dark, so give each light a reason to be where it is.
Common mistakes
- Using an extension cord. The Harbor Freight manual says “Do not use extension cords.”
- Adding a dimmer. The same manual says “Not for use with dimmers.”
- Connecting two power supplies. The Harbor Freight manual says “Do not connect two or more power supplies together,” and the Kichler sheet says “Do not connect two or more power supplies in parallel.”
- Setting the power unit too close to water. The manuals give 5 feet from a pool or spa and 10 feet from a fountain for the power unit.
- Burying the cable at the wrong depth. The two manuals differ, so the manual for your kit decides.
- Lighting every bed. Iowa State Extension advises one or two focal points per area, and the rest can stay in shade.
Timing and season
The sources we opened do not say when to install path lights. They do not give a season for burying cable or running a new outlet, and they do not say whether cold weather changes the work. The Iowa article is from 1994, so treat its planning advice as background rather than current product guidance. Plan the job around the instructions in your kit and the local rules where you live.
How we chose
We chose pages that make installation or safety statements about outdoor path lighting. Three are product manuals: a Volt low-voltage transformer manual, a Kichler landscape installation sheet, and a Harbor Freight Tools manual for a low-voltage landscape power unit. Two are extension pages: a WSU Extension Ferry County release titled “Lighting the Garden” and an Iowa State University Extension article titled “Landscaping with Light,” which is dated 1994. We read each page on 2026-10-21 and used only sentences that appear in the text we retrieved. Where the manuals disagree, we show both statements. Our criteria were three: the page addresses outdoor path or landscape lighting, it states an installation, wiring or safety requirement, and the statement can be quoted from the text we retrieved. We set aside pages that could not be opened or did not describe path lighting, including an Arizona extension page that returned a not-found status.
What we could not verify
Some parts of this guide go beyond the sources. The points below are what the pages we opened do not cover, and we have not filled those gaps from memory.
What the sources do not say
- Solar path lights. None of the pages we opened compares solar units with low-voltage kits for brightness or lifespan. For a separate look at solar options, see our guide to solar powered LED outdoor lights.
- IP ratings. The three manuals we opened do not give an IP rating for any power unit or fixture, so none is stated here.
- Permits and inspections. None of the sources says whether a permit or inspection applies to a path. Follow your local rules.
- Stake installation. None of the manuals gives steps for pressing the stakes into the ground.
- Total load. The Harbor Freight manual sets a 120W lamp load and the Kichler sheet sets a 300 W power unit rating. None of the sources explains how to add up fixtures along a long path, or how many fixtures one unit can run.
- Current code. The Iowa article is from 1994 and does not cite a current electrical code edition.
Where two manuals disagree, this guide shows both figures and does not choose one.
Frequently asked questions
Can I run a path light off an extension cord?
The manual we opened says not to. The Harbor Freight manual states “Do not use extension cords,” so plug the power unit directly into the outlet that the manual describes.
Does my outlet need GFCI protection?
The manuals we opened say so. The Volt manual calls for a GFCI protected receptacle with an In-use cover, and the Harbor Freight manual says that outdoor units should connect to “a receptacle protected by a GFCI branch.”
How far should the power unit sit from a pool?
The Harbor Freight and Volt manuals both give 5 feet (1.5 m) or more from a pool or spa, and 10 feet (3.05 m) or more from a fountain. The Kichler sheet gives 10 feet (3 m) for the fixture. Read the figure printed for your own product before you pick a spot.
How deep should I bury the cable?
The sources disagree. The Kichler sheet says a minimum of 6 inches (152 mm), and the Harbor Freight manual describes shallow burial of less than 6 inches (152mm) for the main secondary wiring. Use the depth printed for your kit, since the sources we opened do not give a single figure.
Can I add a dimmer to my path lights?
Not on the Harbor Freight unit, because that manual says “Not for use with dimmers.” Check the same note on your own power unit before you install a dimmer switch, since the sources do not say whether dimmers suit other kits.
