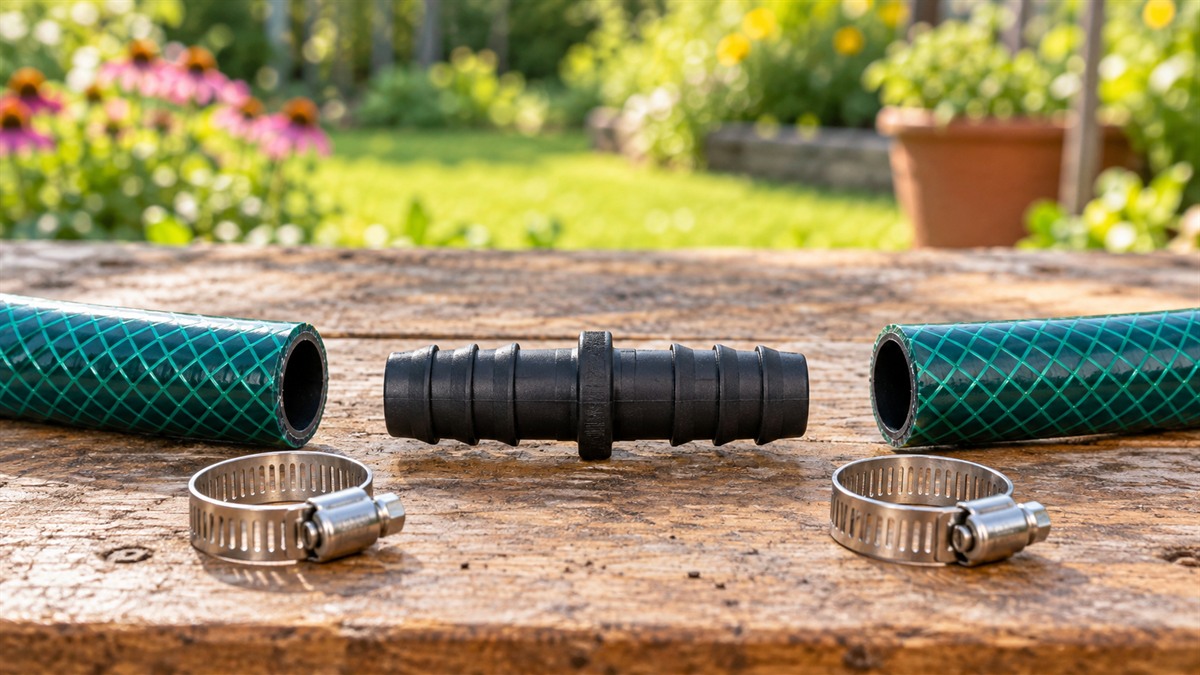

1 inch to 1 inch hose connector joins two hoses or tubes with a 1 inch inside diameter so you can repair a cut or extend a line. This guide explains barb fit, materials, clamps, and pressure and temperature limits from the listings. You will see five barbed splices that join 1 inch to 1 inch, plus notes on threaded and reducer options. Use it to match your hose inside diameter, choose a material for your setting, and avoid leaks from mismatched threads.

Quick answer

Choose a straight barbed 1 inch to 1 inch hose connector when both hose ends measure 1 inch inside diameter. For garden and irrigation splices, match barb to hose inside diameter, add clamps, and check the listing for pressure and temperature limits. Stainless steel suits damp locations, PVC suits single irrigation repairs, polypropylene suits light multi-packs, and aluminum suits automotive-style coolant and fluid hose splices. If one end is threaded or a different size, you need a different fitting type, not a straight 1 to 1 barb. Check thread type before you order.

What matters for a 1 inch to 1 inch hose connector

A straight 1 inch splice only works when both sides are the same size and the same connection style. These five points decide fit and durability.

1. Inside diameter match

A barbed 1 inch to 1 inch hose connector needs 1 inch inside diameter hose on both ends. The listings describe barbs that push inside tubing. Measure the inside opening, not the outside. If your hose is 3/4 inch, look for a 3 4 Female to Female Hose Connector or a reducer described as 1 inch to 3 4 inch hose connector. Do not stretch a smaller hose over a larger barb.

2. Barb versus thread

Barb-to-barb splices join hose to hose. Barb-to-thread adapters join hose to pipe. Several listings combine a 1 inch barb with a 1 inch NPT male end. Those help when one side is pipe thread, but they do not join two plain hoses. For threaded garden hose ends, see Best Garden Hose Connector with Shut Off Valve and Best Hose Connector with Control Valve.

3. Material and corrosion

The picks below use Schedule 40 PVC, 304 stainless steel, polypropylene, and aluminum alloy. The listings link material to corrosion resistance or light weight. Stainless listings mention corrosion resistance for wet use. PVC and polypropylene listings mention non-metal construction for irrigation and low-pressure lines. Choose based on exposure, chemicals, and heat. Only say lead-free or drinking-water-safe if the listing states it.

4. Clamps and sealing

Barbs hold by friction, but the listings recommend hose clamps for a tight seal. One pick includes 4x stainless steel clamps. Others state that the barb creates a better seal when used with a clamp. Plan on two clamps per splice, one per barb end. Check the listing for clamp size before you buy.

5. Pressure and temperature limits

Listings that state limits differ. One polypropylene splice states it can withstand 125 psi at 70°F and temperatures from -9°F to 177°F. That detail matters for irrigation timing and winter storage. When a listing does not state pressure, temperature, lead content, or drinking-water safety, treat it as unknown and check the product listing and manufacturer’s manual.

How to choose a 1 inch to 1 inch splice for your setup

Start with hose type. Lay-flat garden hose, reinforced vinyl tubing, polyethylene irrigation tubing, and radiator hose all measure differently and feel different on a barb. Push-fit success depends on wall stiffness and inside diameter consistency.

Confirm both ends are plain cut ends. If either end has a threaded coupling, a quick-connect, or a shutoff, a straight barb splice will not attach. For tap-side connections, review Best Outdoor Tap Connector for Hose and Best Hose Pipe Connector for Kitchen Tap. For drip and soaker branches, review Best 1 2 Inch Soaker Hose Fittings.

Choose pack size by project. A single splice fits one cut. A 2-pack or 4-pack fits longer rebuilds or spare parts. A 6-pack fits repeated greenhouse or yard lines. Do not buy extra metal fittings to save for years in damp air unless the listing supports that storage use.

Decide material by fluid and location. Use stainless where the listing claims corrosion resistance and the splice stays wet. Use PVC or polypropylene where weight, cost handling, and low-pressure irrigation matter and the listing lists that use. Use aluminum alloy only where the listing lists coolant, heater, fuel, or air hose use and your fluid matches.

Readers searching for 1 2 inch brass hose connector or 3 4 inch brass hose connector usually need smaller garden-thread fittings. Those are not interchangeable with 1 inch barb splices. For brass garden-thread options, see Best Brass Quick Connect Garden Hose Fittings and Best Morvat Brass Garden Hose Splitter.

Check thread labels with care. GHT garden hose thread and NPT pipe thread are different. One listing in the wider market pairs 3/4 inch GHT with 1 inch NPT. That type of adapter needs exact thread confirmation. A 1 inch to 1 inch barb splice avoids thread matching because it has no threads.

Plan clamp placement. Slide clamps onto the hose before you insert the barb. Warm stiff hose in sun for easier insertion where the manual allows heat. Push fully to the center stop or flange, then position clamps over the barbed area and tighten evenly. Check for bulges or splits.

Test slowly. Turn water on partway, look at both barb ends, then open fully. If you see weeping, reposition the clamp, check hose cuts for square edges, and replace cracked hose. For pressure washer supply sides, see Best Garden Hose Connector to Pressure Washer.

If you maintain beds near watering lines, yard waste adds up. You can compost at home using food scraps from your kitchen and dry leaves and woody material from your yard.

Detailed picks: straight 1 inch barbed splices

Lakesstory 1 inch barbed PVC coupling — single repair

This is a 1-pack black Schedule 40 PVC straight coupling with barb ends. The listing presents it for irrigation and water transfer, plus garden watering setups and landscaping. It suits a single cut in 1 inch tubing where you want non-metal construction and corrosion resistance stated for PVC. The listing does not state included clamps, pressure, or temperature. Plan to supply your own clamps and check the product listing for limits. Skip if you need a multi-pack, metal strength, or stated high-heat use.

SKLSSVF 1 inch stainless splices with clamps — wet locations

This is a 2-count 304 stainless steel barbed splicer set with 4x stainless steel clamps included. Dimensions are listed as 0.78 x 0.78 x 3.93 inches. The listing describes corrosion resistance and a barbed design for grip. It suits joining irrigation, plumbing, fuel lines, and hydraulic setups where the listing allows that fluid, and where you want clamps in the box. The listing does not state pressure or temperature. Skip if you need plastic for chemical compatibility stated only for polypropylene, or if you need threaded pipe connection.

BUSY-CORNER 1 inch x 1 inch plastic splices — spares

This is a 6-piece white polypropylene barbed splicer set for 1 inch hose inside diameter. The listing states it can withstand 125 psi at 70°F and temperatures from -9°F to 177°F, but it is not resistant to oil. That stated range helps you decide about summer irrigation versus oil or fuel contact. The listing mentions smooth surface and inner wall and light construction. It suits repeated low-pressure repairs in compatible tubing. Clamps are not listed as included. Skip if your line carries oil or if you need metal heat tolerance.

Hicarer 1 inch to 1 inch aluminum splices — 4-pack

This is a 4-count aluminum alloy hose barb set with both ends designed with 1 inch standard hooks and a middle positioning flange. Item dimensions are listed as 4.72 x 3.94 x 1.97 inches and item weight as 4.16 ounces. The listing describes multi-layer stepped ribs, smooth inner cavities, and use with standard threaded clamps or stainless steel clamps. It lists automotive cooling, intake pipes, motorcycle and ship systems, and laboratory gas-liquid transport where applicable. It suits centered splices where a flange helps alignment. Skip if you need garden potable-water assurance, which the listing does not state.

JoyTube 1 inch radiator barb splice — single centered joint

This is a single silver aluminum barb coupler with a hose flange to keep the coupler centered. Item weight is listed as 0.02 kg. The listing states it connects two same 1 inch inside diameter hoses and lists radiator, brake booster, and vacuum line hose repair uses. The barb is described as creating a better seal when used with a hose clamp. It suits one automotive-style fluid or air hose splice where the fluid matches the listing. Skip if you need an irrigation multi-pack, included clamps, or stated drinking-water compliance.

Comparison table built only from listing data

Pick	Size as listed	Material as listed	Count	Dimensions / weight as listed	Clamps included as listed
Lakesstory PVC coupling	1 Inch	Polyvinyl Chloride	1	Color Black	Listing does not state clamps
SKLSSVF stainless splicer	1 Inch Hose Barb	Stainless Steel	2	0.78 x 0.78 x 3.93 inches	4x Stainless Steel clamps
BUSY-CORNER plastic splicer	1 Inch	Polypropylene	6	Thread Size 1 inch as listed	Listing does not state clamps
Hicarer aluminum splicer	1 to 1	Aluminum Alloy context per bullets	4	4.72 x 3.94 x 1.97 inches; 4.16 ounces	Works with standard clamps; clamps not listed as included
JoyTube aluminum splice	1 Inch	Aluminum	1	0.02 kg	Clamp recommended; clamp not listed as included

Check each product listing for thread details where applicable. One listing in this set notes Metric Tapered thread type in specs while describing a barb connector, and another lists Brass exterior finish for a polypropylene part. Treat mixed labels as unclear and rely on the barb size and hose inside diameter.

Planning example with a two-cut irrigation rebuild

This worked example helps you decide pack size and clamp count. It uses a hypothetical layout you define once.

Our planning estimate uses this scenario. You have one 1 inch polyethylene lateral with two bad spots. You will cut out each spot and install one straight splice per spot. Each splice needs 2 clamps, one per hose end.

Step 1: Count splices. 2 cuts = 2 splices needed. Step 2: Count clamps. 2 splices x 2 clamps per splice = 4 clamps needed. Step 3: Compare packs. A 1-count pack provides 1 splice. Shortfall = 2 needed – 1 provided = 1 splice short. A 2-count pack with 4 clamps provides 2 splices and 4 clamps. Match = 2 needed – 2 provided = 0 shortfall. A 4-count pack provides 4 splices. Surplus = 4 provided – 2 needed = 2 spare splices. Step 4: Check hose engagement. The stainless splice length is listed as 3.93 inches. Half-length per side = 3.93 inches / 2 = 1.965 inches insertion per side in our planning estimate. Step 5: Verify totals twice. Splices: 1 + 1 = 2. Clamps: 2 + 2 = 4. Pack coverage for 2-pack: 2 – 2 = 0 remaining need.

Result: for two cuts, choose a 2-pack that includes 4 clamps, or a larger pack plus separate clamps. For one cut, a 1-pack plus 2 separate clamps works in our planning estimate. Always confirm inside diameter with a caliper and follow the manufacturer’s manual for insertion and clamp torque.

5 Common mistakes with 1 inch splices

1. Measuring outside diameter

Outside diameter includes wall thickness. Barbs fit inside diameter. A hose that measures over 1 inch outside may still be 1 inch inside. Measure the opening. If you need help with hose sizing terms, see Best Inside Diameter of a Garden Hose.

2. Using a barb splice on threaded ends

Cut hose ends accept barbs. Finished male or female hose couplings do not. If your ends have threads or quick-connects, you need threaded adapters or quick-connect parts. See Best Brass Quick Connect Garden Hose Fittings.

3. Skipping clamps

A barb alone may hold for a dry fit but leak under flow. The listings that mention clamps recommend them for sealing and anti-slip. Use two per splice and recheck after first use.

4. Mixing GHT and NPT

Garden hose thread and pipe thread seal differently. Do not force a garden hose onto NPT pipe threads. When you need hose-to-pipe, match the exact thread labels in the listing. For PVC pipe transitions, see Best 2 Inch Pvc to Garden Hose Adapter.

5. Assuming potable or chemical safety

Only one wider-market stainless barb listing in this data set mentions lead-free compliance for potable use. The five barb-to-barb picks above do not state drinking-water safety. Only use a fitting for drinking water, beverage, food, fuel, or oil if the listing states that use. Otherwise choose a fitting that names your fluid and standard.

Buying scenarios

Single garden lateral cut

You nick one spot with a shovel. Buy a 1-pack PVC or aluminum splice for 1 inch inside diameter hose plus 2 clamps. Cut out the damaged section square, insert fully, clamp, and test. Keep the line drained before frost if the listing does not state freeze tolerance.

Rebuilding an older line with several weak spots

Older tubing often fails in more than one place. A 4-pack or 6-pack reduces repeat orders. The 6-piece polypropylene set suits compatible low-pressure tubing where the listing states 125 psi at 70°F. The 4-piece aluminum set suits centered splices where the listing lists fluid compatibility. Buy extra clamps when the set does not include them.

Damp pump or utility area

Constant moisture favors corrosion-resistant metal. The stainless 2-pack includes 4 clamps and lists 304 stainless construction. Confirm dimensions of 0.78 x 0.78 x 3.93 inches against your space, then mount with support so the splice does not carry the hose weight.

Care, storage, and safety

Drain lines before freezing weather unless the manual allows otherwise. Sun hardens vinyl and polyethylene, which makes later removal difficult. Cut off old barbed sections rather than twisting them out. Keep spare splices dry and keep clamps oiled lightly only if the clamp maker allows it.

Do not use irrigation fittings for fuel, oil, or pressurized air unless the listing names that use. The polypropylene listing warns it is not resistant to oil. The aluminum listings name coolant, heater, fuel, or air uses, but you must match your exact fluid and follow the manual. For drinking water, choose only a fitting that states lead-free or potable-water compliance and names the standard.

Follow local plumbing and garden rules for permanent connections. This guide covers above-ground repairs and extensions, not in-wall plumbing. When in doubt, ask a professional and follow the manufacturer’s manual.

FAQ

How do I know I need 1 inch to 1 inch?

Measure the inside opening on both hoses. If both read 1 inch inside diameter and both ends are plain cut tubing, a straight 1 inch barb splice fits. If one side is smaller or threaded, you need a reducer or threaded adapter.

Will a 1 inch barb fit 1 inch PVC pipe?

Not always. Pipe size and hose inside diameter use different sizing systems. A fitting described as 1 inch barbed insert PVC coupling is made for compatible 1 inch tubing. Check the product listing for tubing compatibility and inside diameter range.

Do I need hose clamps with barbed splices?

Yes in most garden and irrigation uses. One listing includes 4 stainless clamps. Others recommend clamps for sealing. Use one clamp per hose end and check for leaks after pressurizing.

Can I use these for drinking water?

Only if the listing states potable-water or lead-free compliance and names the standard. Most picks here do not state it. Check the listing and do not assume plastic or stainless means drinking-water-safe.

What is the difference between GHT and NPT?

GHT is garden hose thread. NPT is tapered pipe thread. They do not interchange. A fitting labeled 3/4 inch GHT male to 1 inch NPT male joins those exact threads. Confirm both ends before ordering.

Can I connect 1 inch hose to 3/4 inch hose?

You need a reducer or stepped adapter described as 1 inch to 3/4 inch, not a straight 1 to 1 splice. Search your hose inside diameters and thread types first, then choose the adapter that names both sizes.

What if my hose is 1/2 inch or 3/4 inch brass thread?

Then a 1 inch barb is too large. Look for fittings that name 1/2 inch or 3/4 inch and match barb or thread style. For ideas, see 1/2 inch splitter and quick-connect guides linked above.

How do I remove an old barbed splice?

Cut the hose back past the barb rather than pulling hard. Slit the old hose lengthwise with a utility knife away from your body and peel it off. Replace cracked hose and use new clamps.

Bottom line

Measure both hose inside diameters first. If both are 1 inch and both ends are plain tubing, choose by material and pack: single PVC repair for one irrigation cut, stainless 2-pack with clamps for damp areas, 6-piece polypropylene for repeated low-pressure splices within its stated 125 psi at 70°F and -9°F to 177°F range, and centered aluminum splices for automotive-style fluid lines named in the listing. If either end is threaded or a different size, buy the adapter that names both exact ends. Check clamp inclusion and limits on the listing before you buy.
